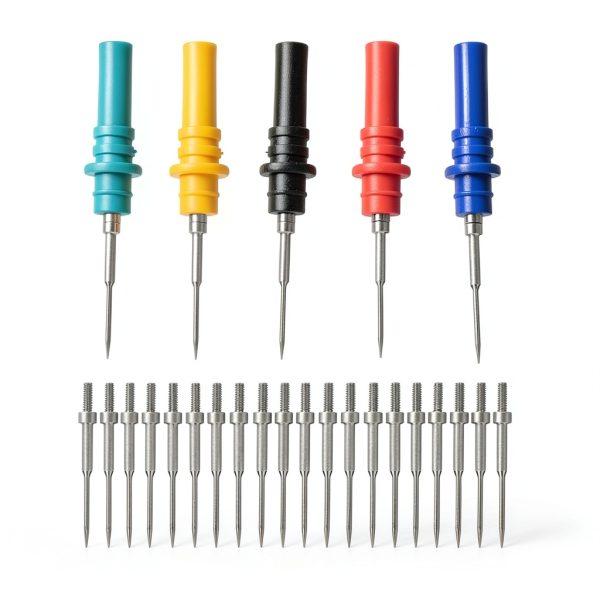

Akozon HT307A Wire Piercing Probes 20‑Pin Set for Oscilloscope

Description

Product Overview

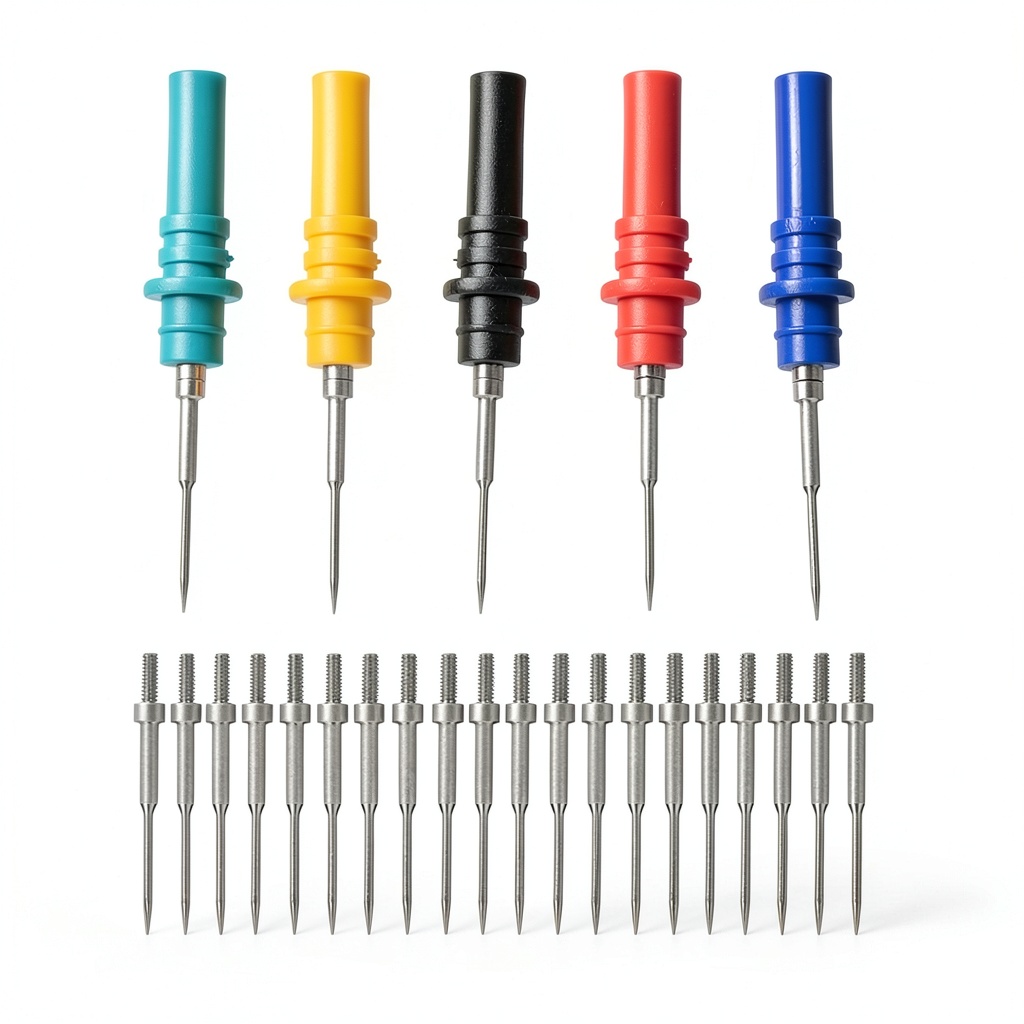

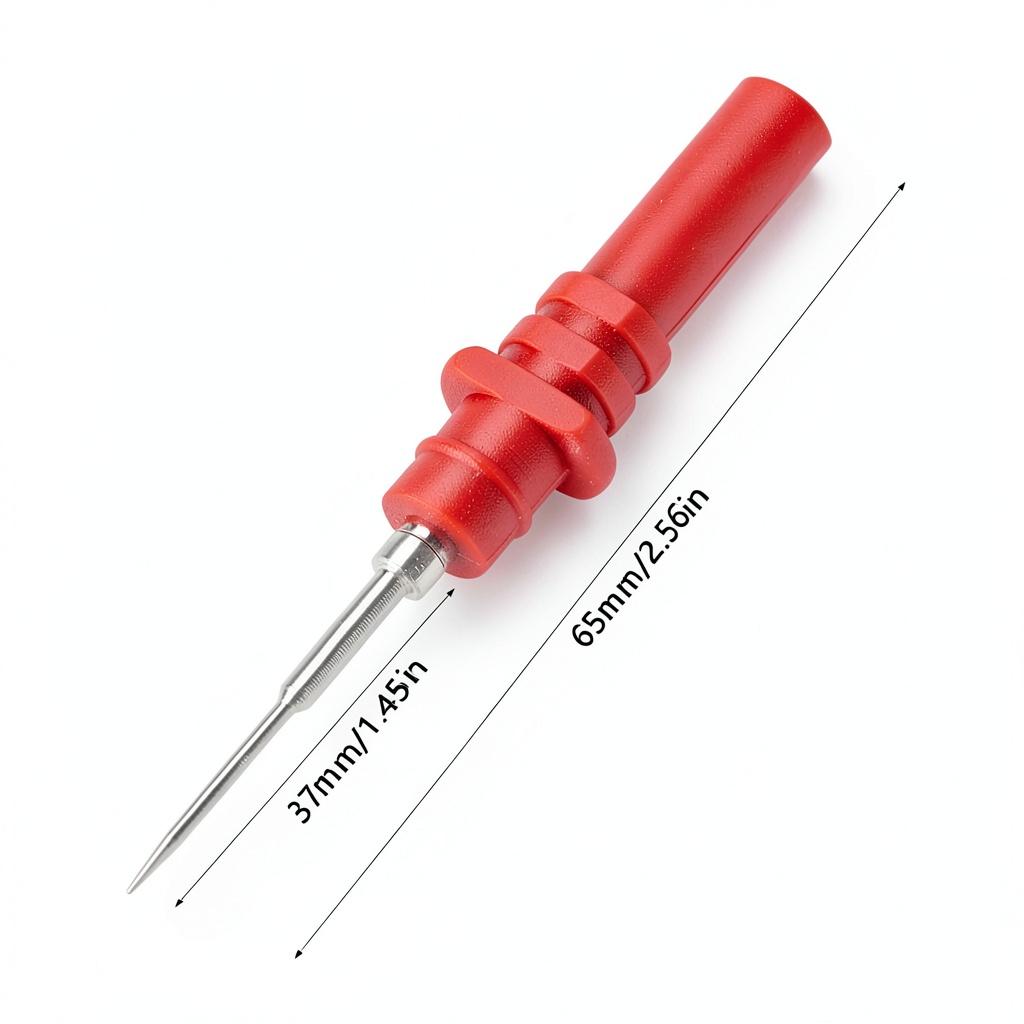

The Akozon HT307A wire piercing probes are engineered for precision electrical testing in automotive environments. Each probe features a high‑conductivity, nickel‑plated tip that easily penetrates the insulation of wires without causing any damage to the conductor. The set includes 20 replaceable pins, each fabricated from a durable alloy that resists corrosion, wear, and heat buildup during prolonged use. Dimensions of the probe housing measure 4.13 x 3.35 x 0.39 inches, weighing just 1.06 ounces, making it exceptionally portable for field technicians. The banana plug connector ensures a secure, low‑resistance connection to standard oscilloscope inputs, delivering stable signal transmission and accurate waveform capture. Designed in five vibrant colors—red, black, yellow, green, and blue—the probes are easy to identify and organize within a tool kit. All components meet industry standards for safety and environmental compliance, providing reliable performance across a wide temperature range.

Usage

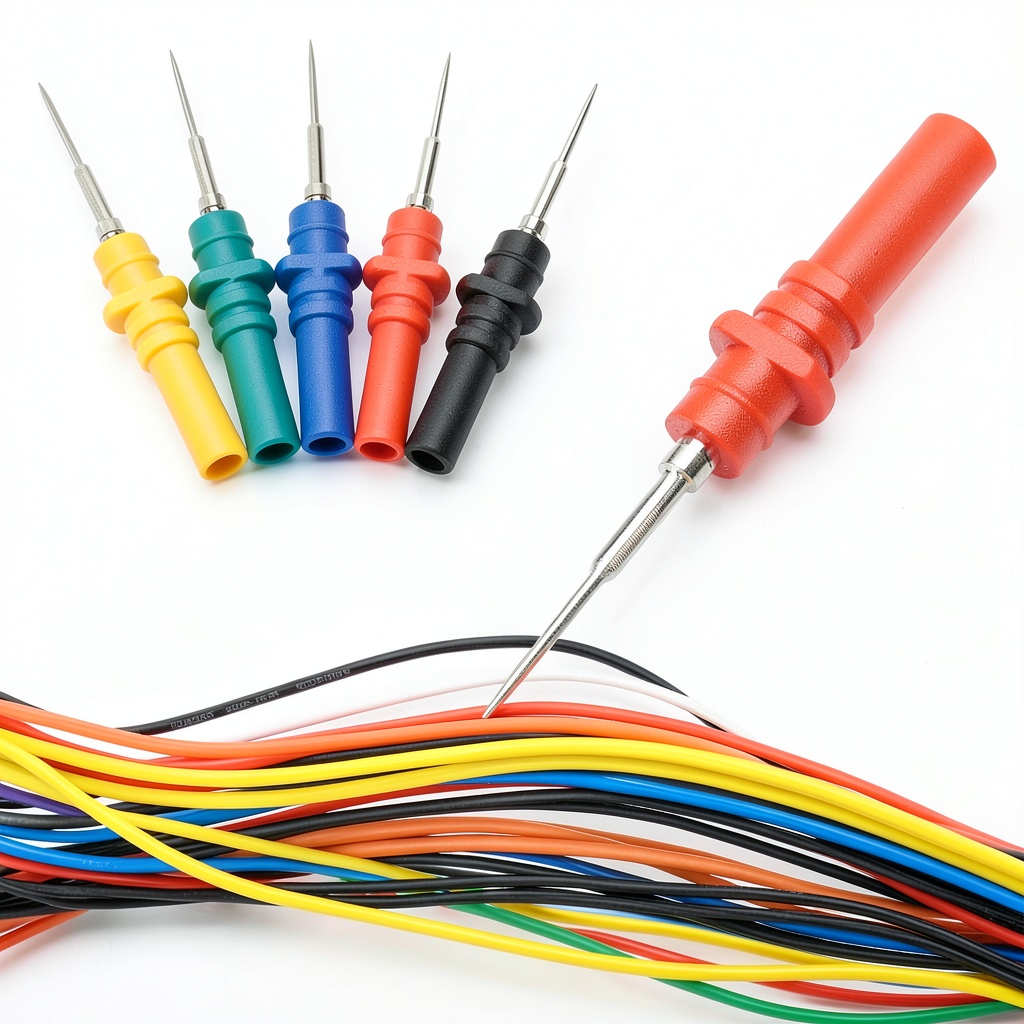

These probes are ideal for automotive electricians, diagnostic specialists, and hobbyists who need to measure voltage, current, and signal integrity on live vehicle wiring. The non‑destructive design allows users to insert the pin through the wire’s insulation, establishing a direct electrical connection without stripping the wire or compromising its integrity. This capability is especially valuable when troubleshooting complex engine control modules, sensor circuits, and CAN bus networks where maintaining the original wiring condition is critical. The lightweight construction enables technicians to carry the set in a pocket or tool box, facilitating quick access during on‑site inspections, service lane diagnostics, or performance tuning sessions. Compatibility with most modern oscilloscopes ensures seamless integration, while the color‑coded pins help differentiate test points during multi‑channel measurements. Whether you are diagnosing a malfunctioning fuel injector, checking a sensor output, or validating a custom wiring harness, the HT307A probes provide consistent, repeatable results.

Why Choose Us

Choosing the Akozon HT307A set means investing in a product that combines rigorous engineering with practical usability. Each probe undergoes CNC‑precision machining to guarantee uniform tip geometry, which translates to reliable insulation puncture and minimal signal distortion. The alloy composition is selected for its anti‑rust properties, ensuring long‑term durability even in humid or corrosive environments typical of automotive workshops. Our manufacturing process adheres to ISO‑9001 quality management standards, and every batch is tested for electrical continuity, resistance, and mechanical strength before shipment. In addition to the robust hardware, Akozon provides comprehensive after‑sales support, including a responsive technical help desk, downloadable user manuals, and a 90‑day replacement warranty for any defective pins. This commitment to quality and customer satisfaction distinguishes our probes from generic alternatives that often lack consistent performance and reliable service.

Key Features

• High‑conductivity nickel‑plated tip delivers accurate signal capture with minimal loss.
• Non‑destructive insulated pins allow testing without stripping or damaging wires.

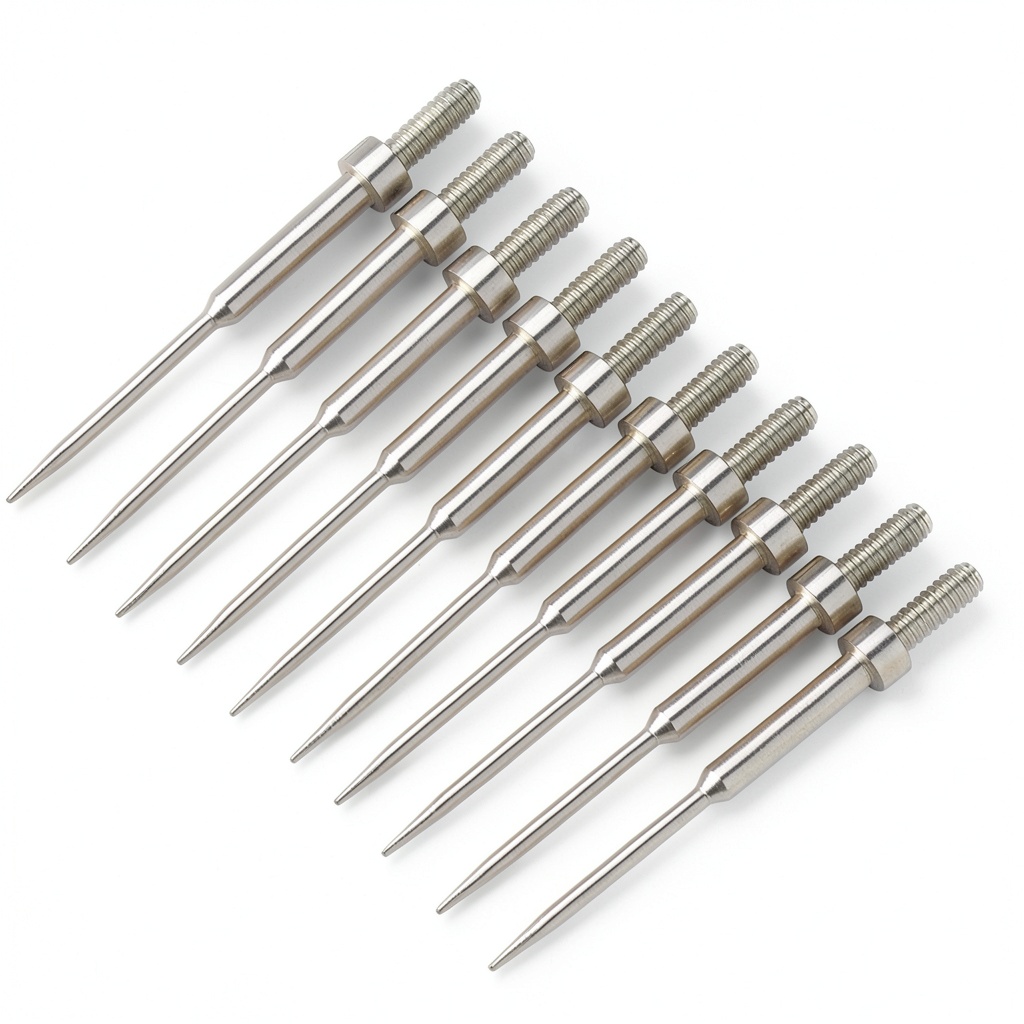

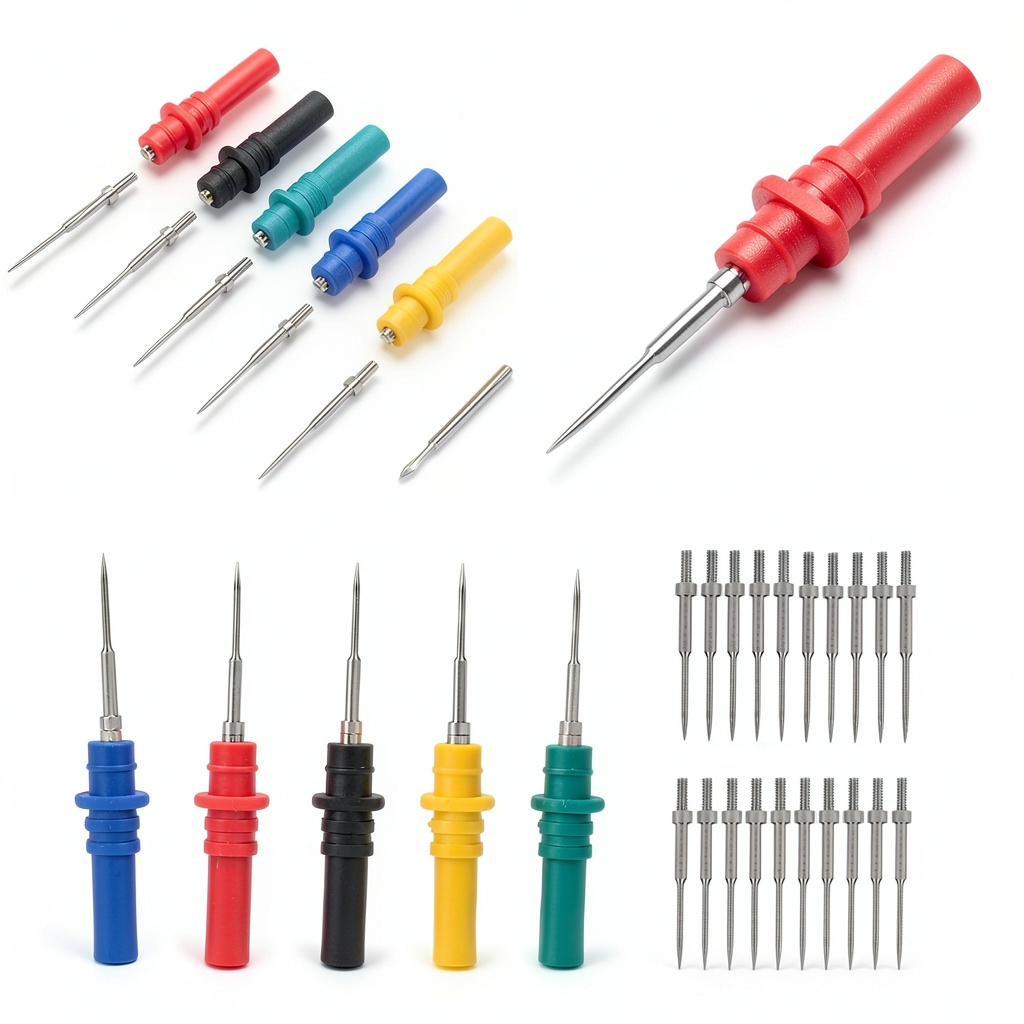

• 20 replaceable pins provide long‑term usability and cost‑effective maintenance.

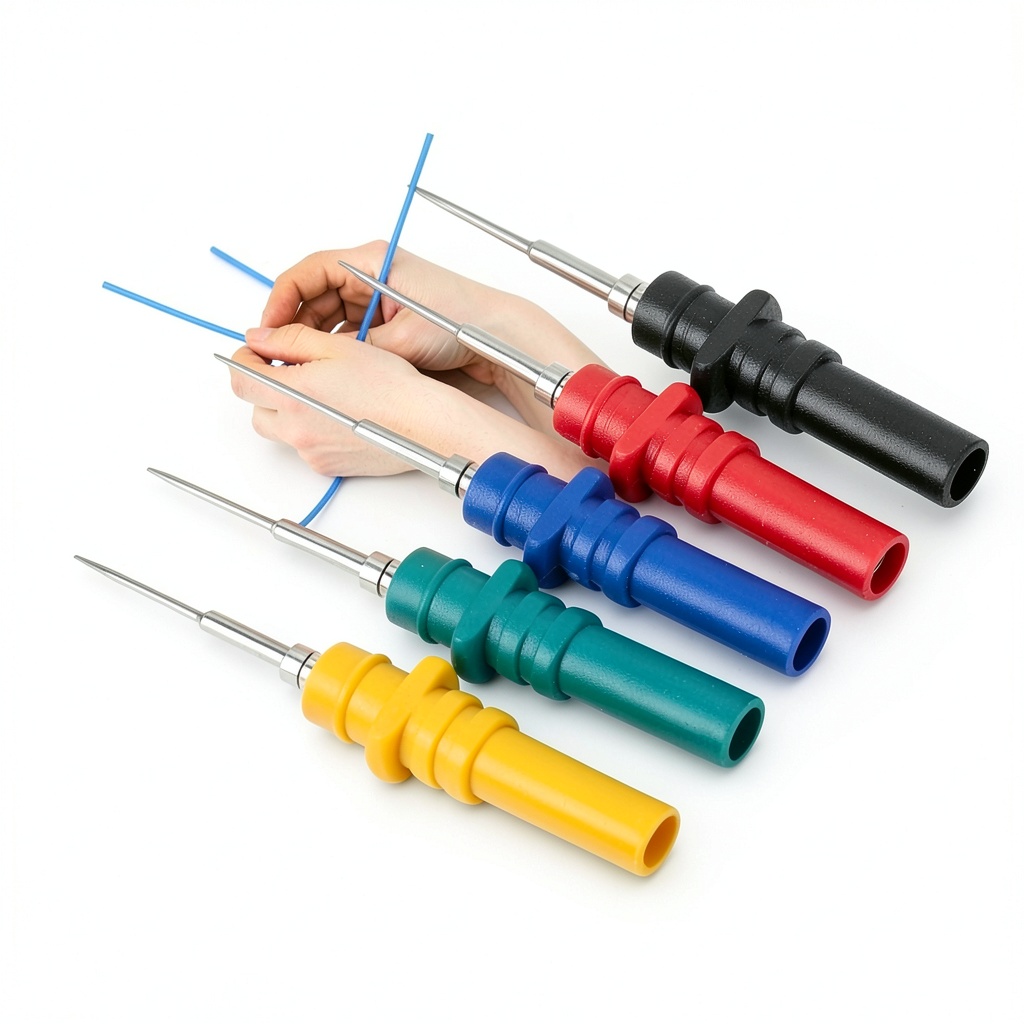

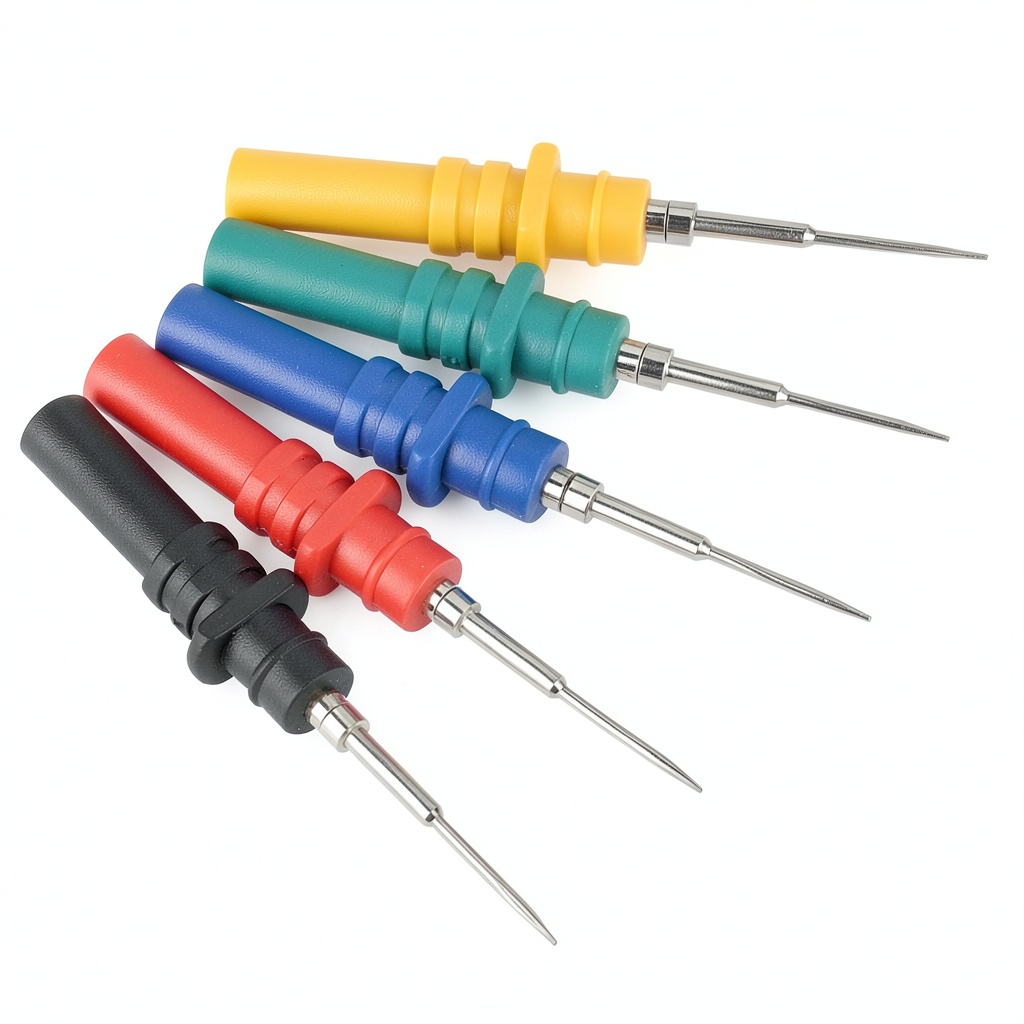

• Color‑coded housing for quick identification and organized workflow in the field.
• Comprehensive customer support and 90‑day warranty ensure peace of mind after purchase.

FAQ

Can the probes be used with any oscilloscope?

Yes, the HT307A probes feature a standard banana plug that fits the majority of modern oscilloscopes and signal generators, making them universally compatible.

Are the pins truly replaceable, and how easy is the replacement?

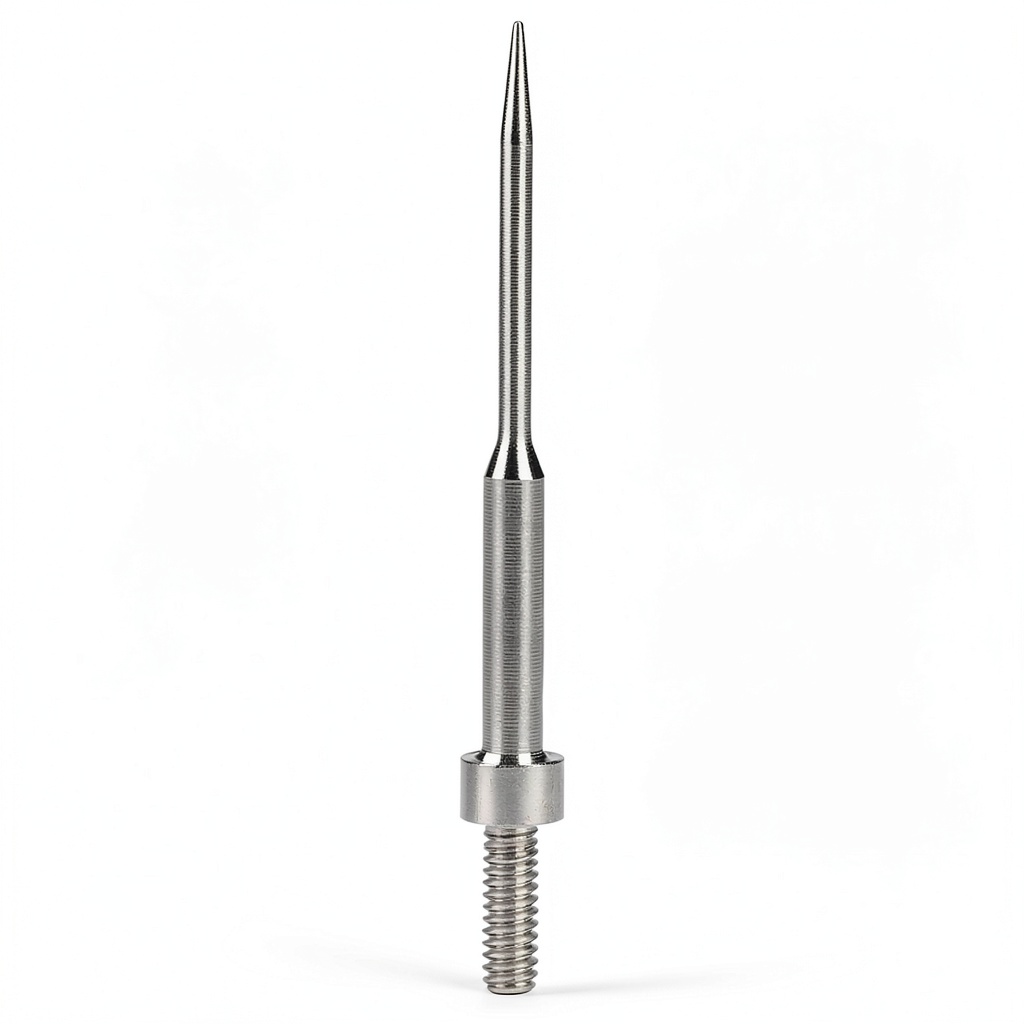

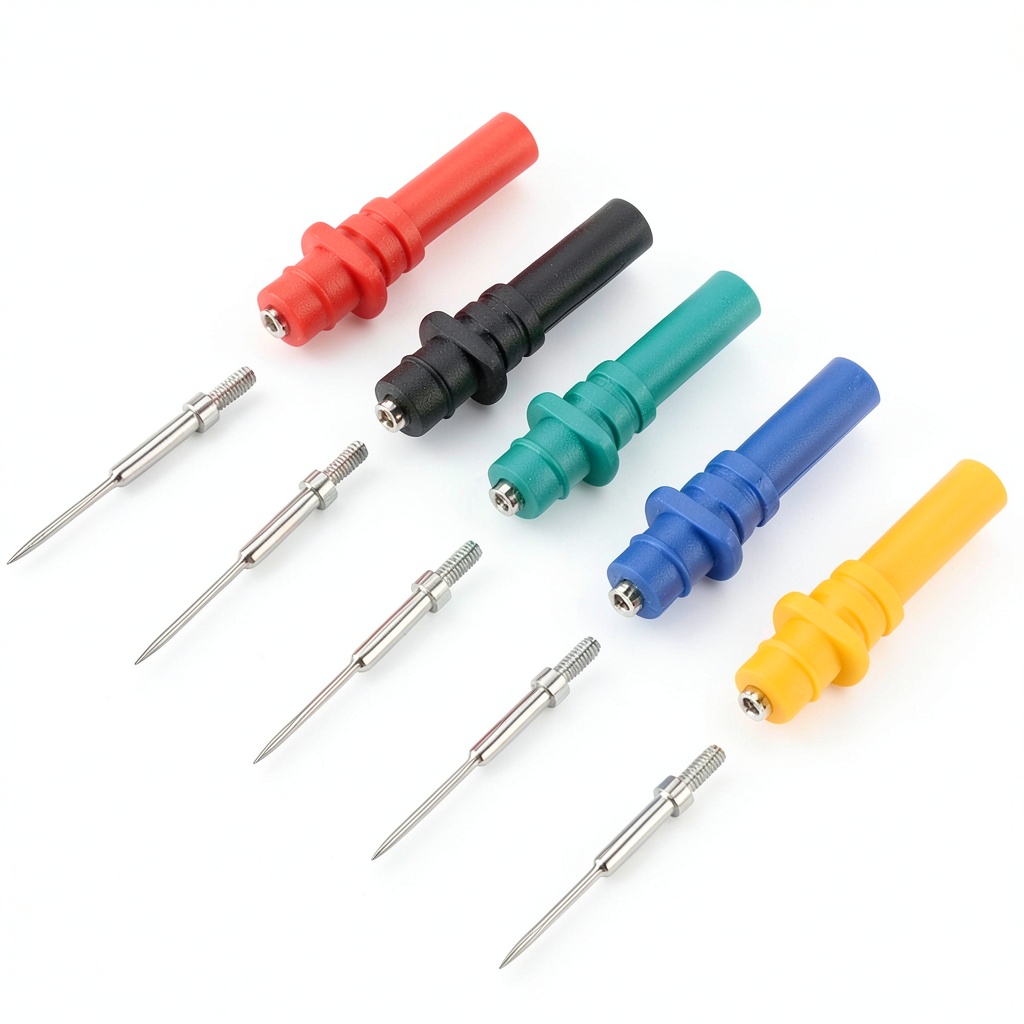

Each pin is designed to be removed with a simple pull‑out motion and re‑inserted without tools. The set includes a small extraction tool for quick swaps, allowing you to replace damaged pins in seconds.

What safety standards do these probes meet?

The probes comply with IEC‑61010 safety standards for electrical testing equipment, ensuring they are safe to use on live circuits up to 600 V without risk of electric shock.

Do the probes affect the signal quality of high‑frequency measurements?

Thanks to the low‑inductance tip and high‑quality shielding, the probes maintain signal integrity even at frequencies up to 100 MHz, making them suitable for most automotive diagnostic applications.

Is there a warranty or guarantee for the product?

Akozon offers a 90‑day warranty covering any manufacturing defects. If a pin fails within this period, simply contact our support team for a free replacement.
