Hantek HT307 Back Pinning Probe Kit 5 Colors for Auto Diagnostics

Description

Product Overview

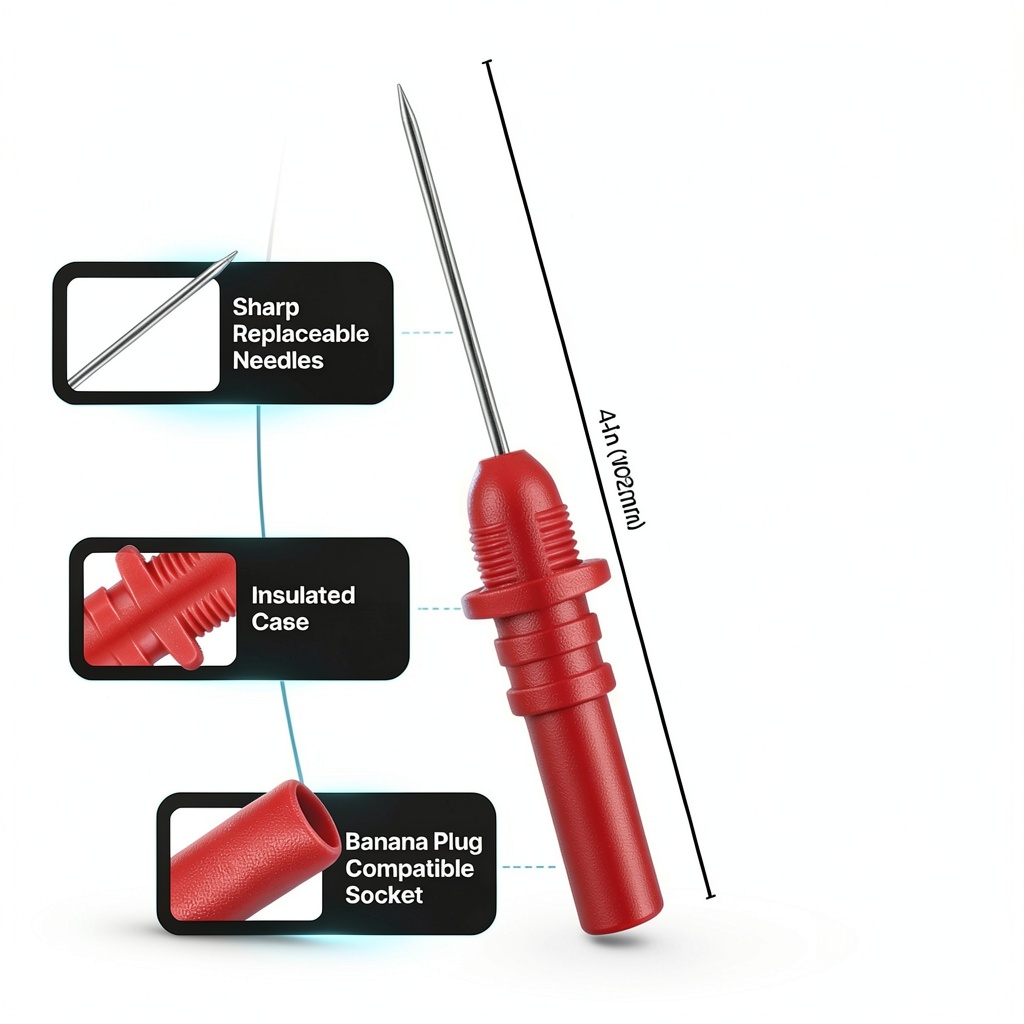

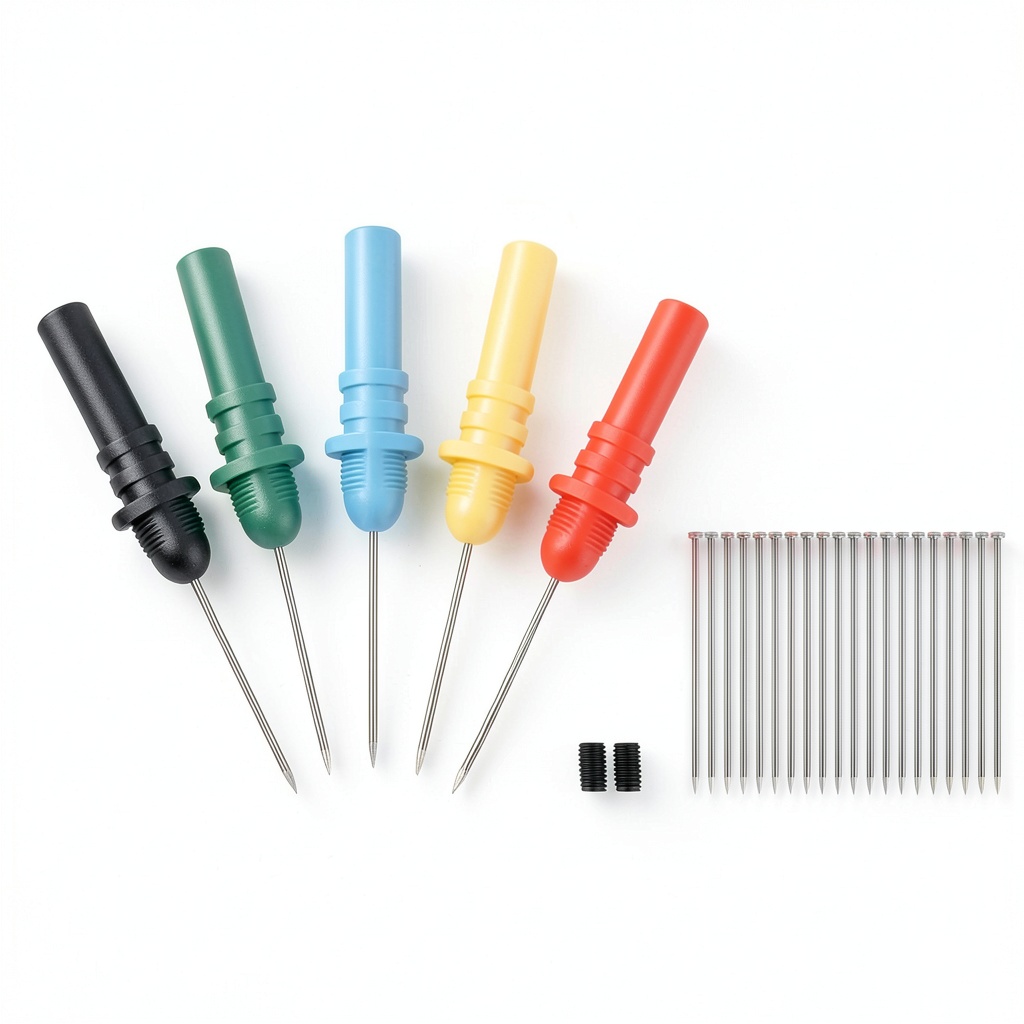

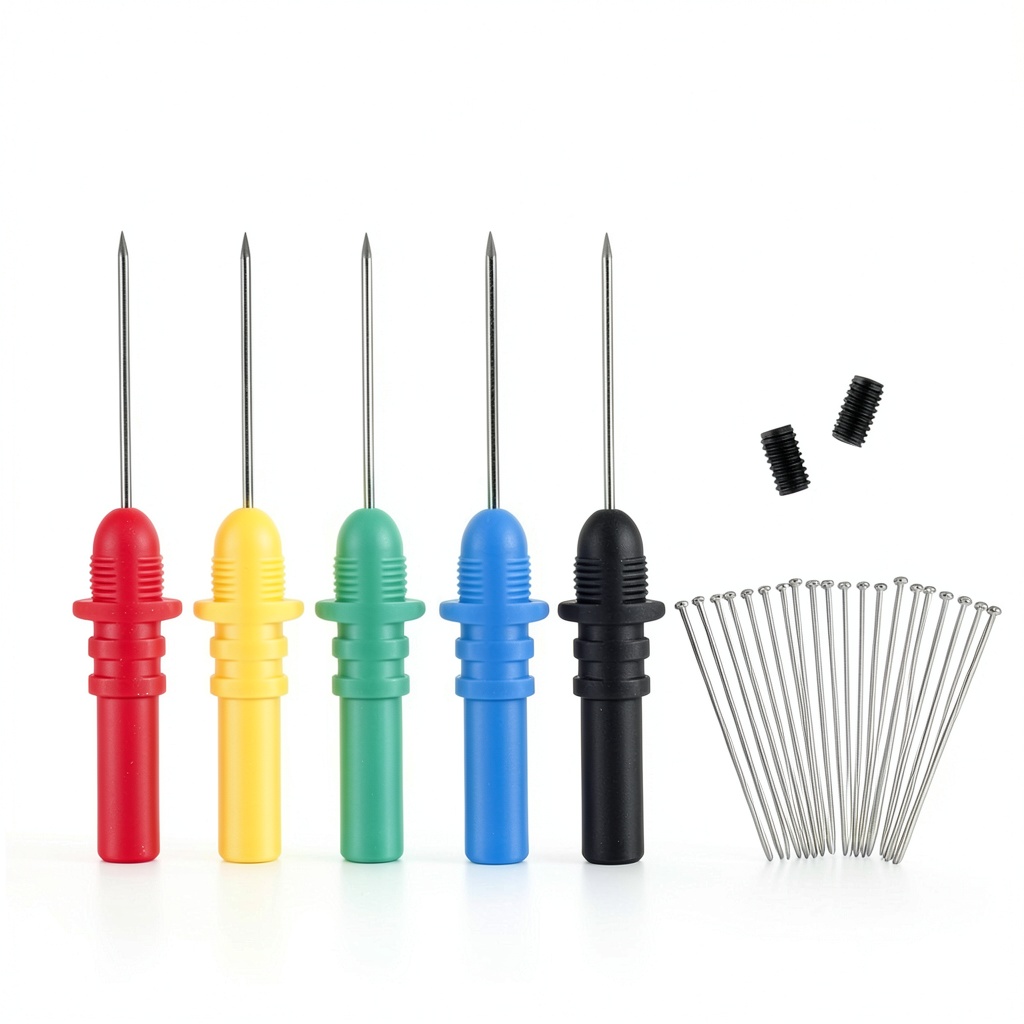

The Hantek HT307 Back Pinning Probe Kit is engineered for professionals who demand accuracy and reliability when working with modern automotive and electronic connectors. Each kit contains five color‑coded probes that are easy to identify on the bench, along with two precision screws that secure the probes firmly to the test leads. The probes feature a hardened steel shaft with a finely sharpened tip, allowing the user to breach insulation and connector seals without compromising the underlying wire. Constructed from corrosion‑resistant materials, the probes maintain their edge even after repeated insertions, and the replaceable needle design means you can refresh the tip without discarding the entire probe.

Dimensions are compact at 5 × 4 × 1 inches, weighing only 0.63 oz, making the kit portable for field service technicians and lab engineers alike. The kit is compatible with standard oscilloscope probe adapters and fits seamlessly into most test rigs, ensuring a hassle‑free integration into existing measurement setups. With a best‑seller rank of #6 in Oscilloscope Probes on Amazon and a 4.6‑star rating from 33 verified customers, the HT307 has proven its value in demanding environments.

Usage

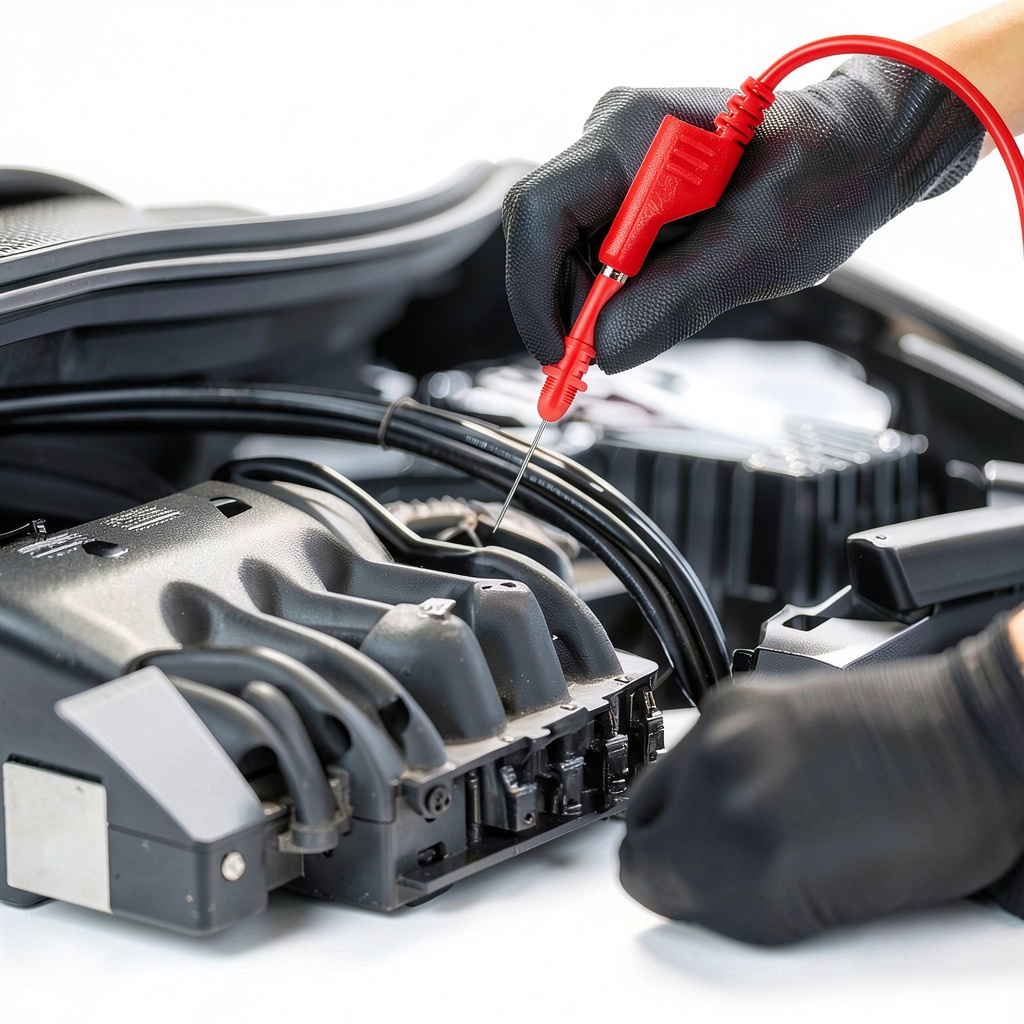

Designed for automotive diagnostic scenarios, the HT307 excels when measuring voltage, current, and signal integrity on tightly packed wiring harnesses. The sharp tip can be used to access hidden test points on engine control modules, transmission control units, and sensor connectors without stripping the wire or causing short circuits. In addition to automotive work, the probes are equally effective on printed circuit boards (PCBs) where component leads are minute and fragile. The interchangeable needles allow you to switch between a fine‑gauge tip for delicate SMD components and a slightly larger tip for standard through‑hole pins.

Field technicians appreciate the kit’s ruggedness; the probes survive drops and vibrations common in workshop environments. The included screws provide a secure mounting method that prevents probe wobble during high‑frequency measurements, preserving signal fidelity. Whether you are troubleshooting a malfunctioning ABS sensor, calibrating a powertrain control module, or performing a bench‑level analysis of a prototype circuit, the HT307 delivers consistent, repeatable results.

Why Choose Us

Hantek is a recognized leader in test and measurement equipment, and the HT307 reflects the company’s commitment to quality and innovation. Each probe undergoes a rigorous inspection process that includes tip geometry verification, hardness testing, and electrical continuity checks. The replaceable needle system reduces long‑term costs by allowing users to purchase only the tips they need, rather than replacing the entire probe assembly.

Our customer support team is staffed by experienced engineers who can assist with probe selection, installation guidance, and troubleshooting advice. We provide a comprehensive warranty that covers manufacturing defects for two years, giving you confidence that your investment is protected. The kit’s color‑coded design also simplifies inventory management in busy service bays, ensuring that the right probe is always at hand.

Key Features

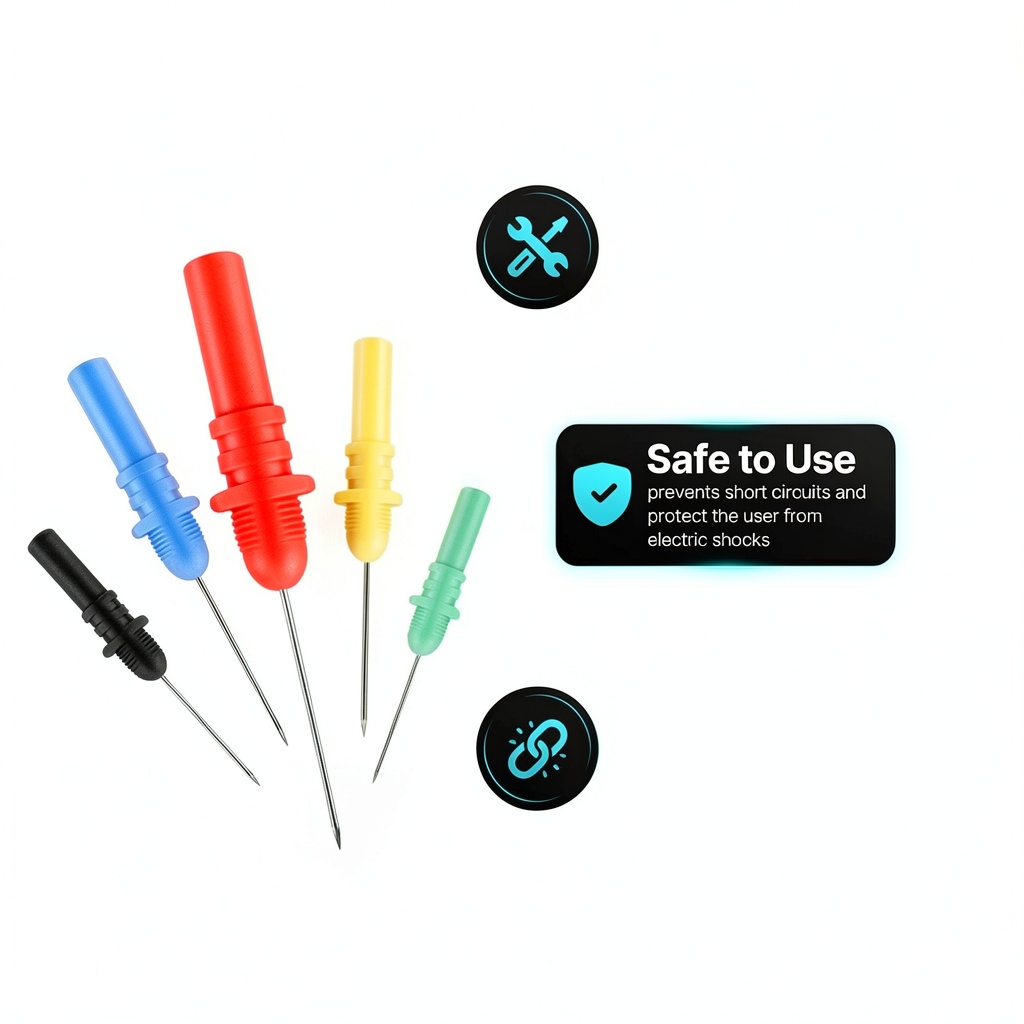

• Five vibrant, replaceable probes with color‑coded handles for quick identification

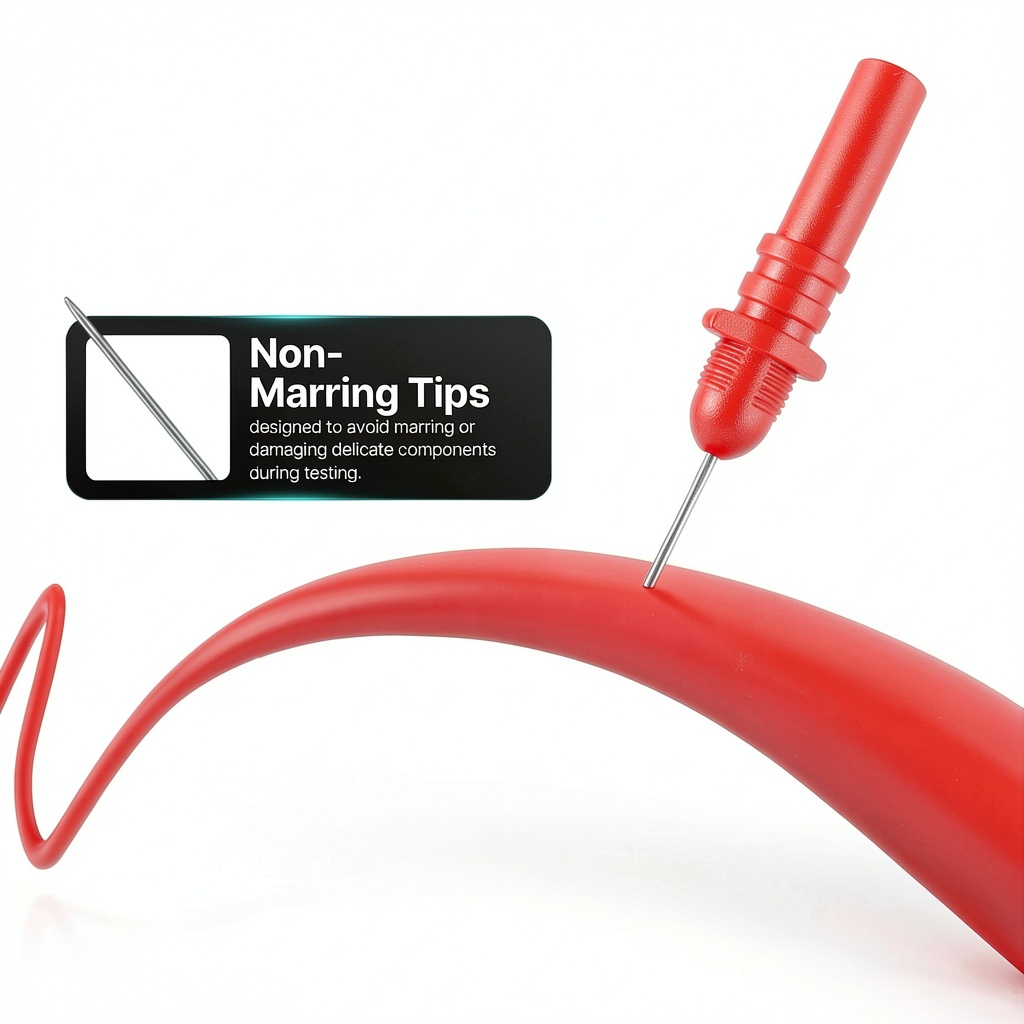

• Sharp, hardened steel tips pierce insulation and connector seals without damaging wires
• Compact, lightweight design (5 × 4 × 1 in, 0.63 oz) for easy portability and field use
• Two precision screws secure probes to test leads, minimizing signal distortion
• Dedicated after‑sales support and a two‑year warranty for peace of mind

FAQ

Can the probes be used on both automotive and electronic circuits?

Yes, the HT307 probes are designed for versatility. Their fine tip geometry works well on small gauge automotive wires as well as on delicate PCB traces, making them suitable for a wide range of diagnostic and testing applications.

How do I replace a worn probe tip?

Each probe features a threaded tip holder. Simply unscrew the worn needle and screw in a new replacement tip that matches the gauge you need. Replacement tips are sold separately and are compatible with all five probes in the kit.

What oscilloscope connector types are compatible with the kit?

The probes use standard BNC connectors that fit most modern oscilloscopes and signal generators. An adapter is included for use with 3.5 mm and 2.5 mm test leads, ensuring broad compatibility across different instrument brands.

Is the kit suitable for high‑frequency measurements?

Yes. The probes are constructed from low‑capacitance materials and the secure mounting screws reduce mechanical vibration, preserving signal integrity even at higher frequencies commonly encountered in automotive sensor diagnostics.

What is the warranty coverage for the HT307 kit?

Hantek provides a two‑year limited warranty that covers any manufacturing defects. If a probe or screw fails due to a defect, we will replace the affected component at no cost to you.
