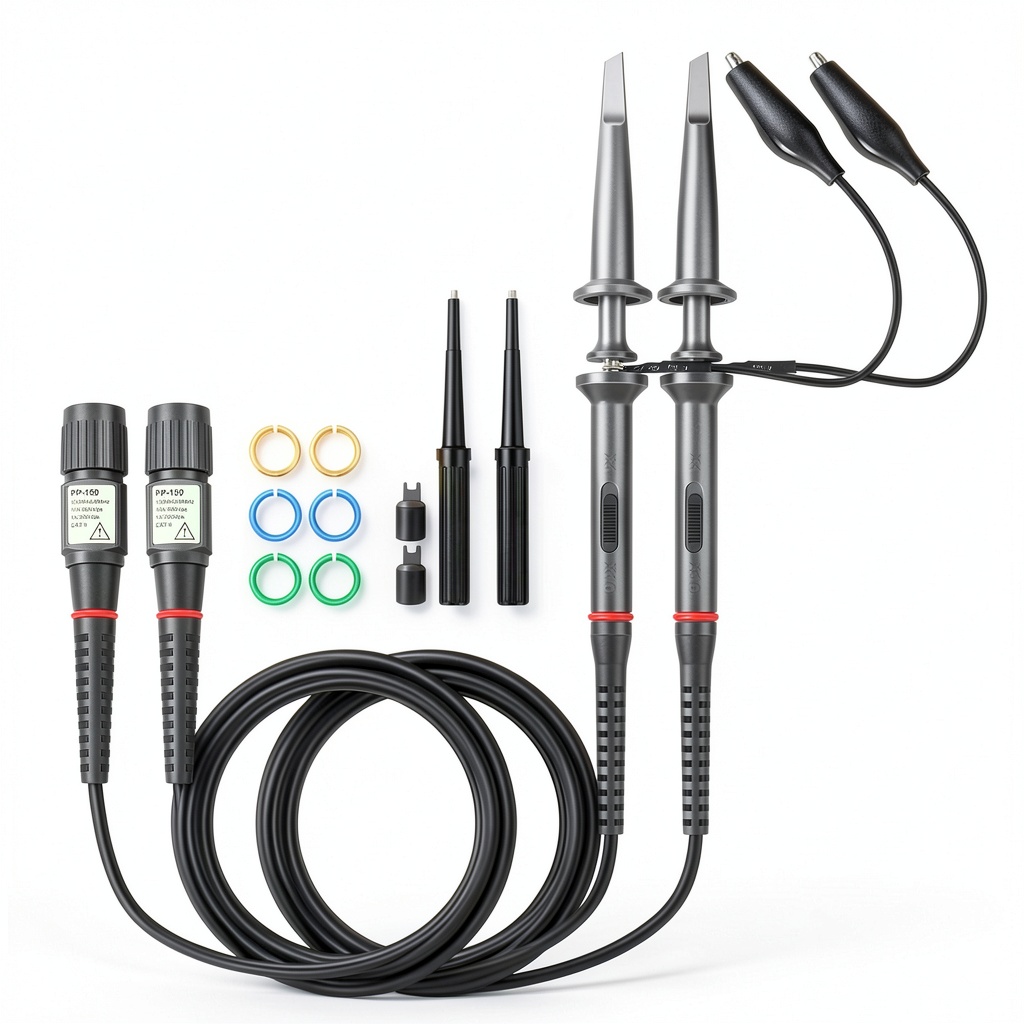

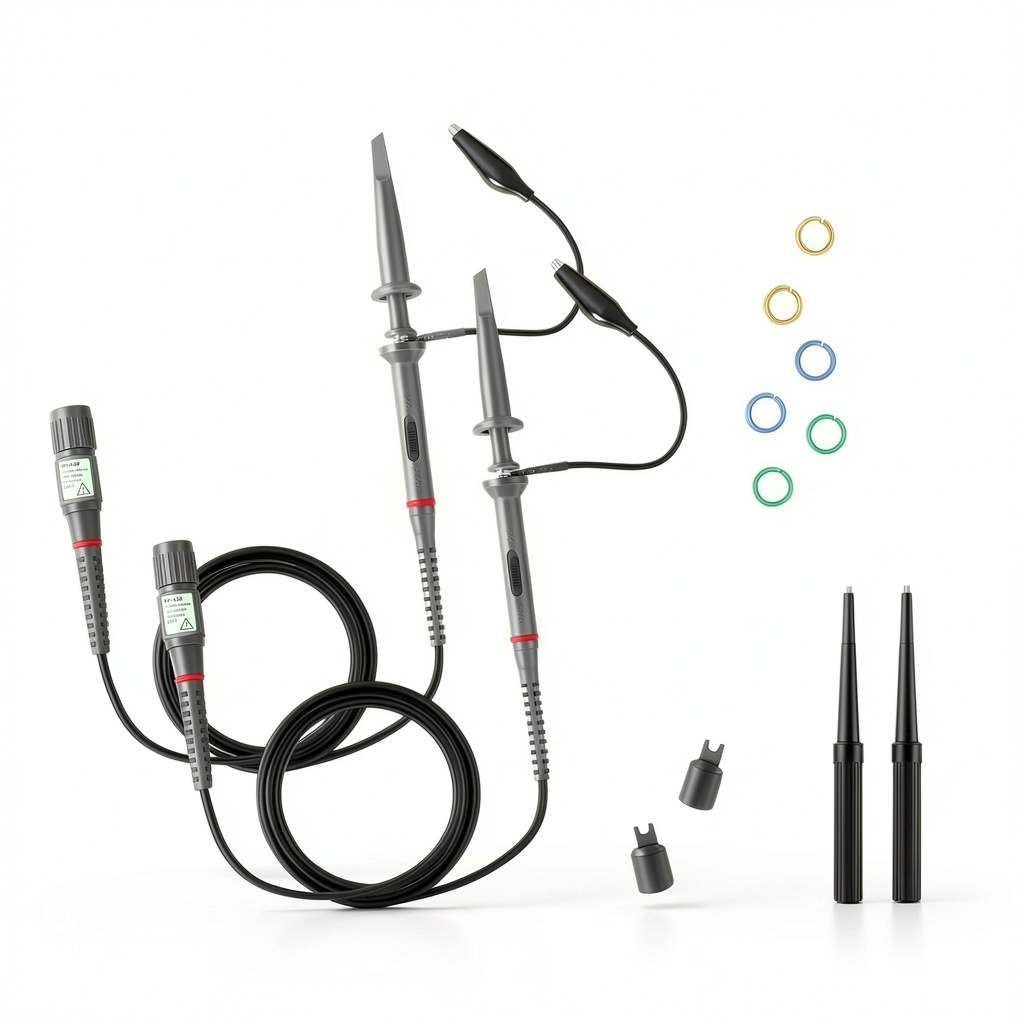

Hantek PP-200 Oscilloscope Probes 200MHz Pack of 2 x1/x10 Attenuation

Description

Product Overview

The Hantek PP-200 oscilloscope probes are engineered to meet the demanding requirements of modern electronic testing. Featuring a robust 200 MHz bandwidth, these probes capture fast transient signals with exceptional clarity, ensuring that engineers and technicians can trust the fidelity of every waveform they observe. The dual attenuation options—x1 for direct measurement and x10 for high‑voltage applications—provide flexibility across a broad range of test scenarios, from low‑level signal analysis to high‑voltage diagnostics.

Each probe incorporates a 10 MΩ input resistance in the x1 mode and a 1 MΩ resistance in the x10 mode, matching the input characteristics of most contemporary oscilloscopes. This design minimizes loading effects, preserving signal integrity while delivering consistent performance. The typical input capacitance of 85‑115 pF (x1) and 18.5‑22.5 pF (x10) further reduces signal distortion, making the PP-200 an ideal companion for precision measurements.

Physically, the probes are built with a 5 mm tip/head style that offers a secure connection to test points, while the 1.2 m (1200 mm) cable length provides ample reach for complex board layouts and bench setups. The cable is shielded to protect against electromagnetic interference, ensuring clean signal transmission even in noisy environments. The probes are packaged in a compact, durable case measuring 9.09 × 5.79 × 1.02 inches and weighing just 4.97 ounces, making them easy to transport and store.

Usage

Designed for versatility, the PP-200 probes excel in a variety of testing environments. In educational labs, they enable students to explore high‑frequency phenomena without the need for expensive equipment, fostering hands‑on learning and deeper comprehension of signal behavior. In professional R&D settings, the probes support detailed debugging of high‑speed digital circuits, power electronics, and RF modules, allowing engineers to pinpoint issues quickly and efficiently.

For field service technicians, the lightweight design and robust construction mean the probes can be carried in a tool kit and deployed on-site for troubleshooting automotive electronics, industrial control systems, and telecommunications hardware. The selectable attenuation modes simplify the measurement of both low‑voltage logic signals and high‑voltage power rails, reducing the need for multiple probe types and streamlining workflow.</n

When used with modern digital oscilloscopes, the PP-200 probes take full advantage of advanced triggering and analysis features, delivering crisp, noise‑free waveforms that enhance diagnostic accuracy. Their low capacitance and high input resistance ensure that even the most delicate signals are captured without distortion, making them suitable for applications such as audio equipment testing, biomedical device verification, and aerospace component validation.

Why Choose Us

Choosing the Hantek PP-200 probes means investing in a product backed by a legacy of quality and reliability. Hantek Electronic Co., Ltd. has a reputation for delivering measurement solutions that combine precision engineering with cost‑effective pricing, and the PP-200 is no exception. Each probe undergoes rigorous testing to ensure compliance with industry standards, guaranteeing consistent performance across the entire production batch.

Our commitment to customer satisfaction extends beyond the point of sale. We provide comprehensive technical support, detailed user manuals, and online resources to help you get the most out of your probes. Should you encounter any issues, our responsive service team is ready to assist with troubleshooting, calibration advice, and warranty claims, ensuring minimal downtime and maximum productivity.

Furthermore, the PP-200 probes are designed with durability in mind. The high‑quality materials used in the tip, cable, and connector assemblies resist wear and tear, while the protective packaging safeguards the probes during shipping and storage. This durability translates into a longer service life, offering better value over time compared to disposable or lower‑grade alternatives.

Key Features

• 200 MHz bandwidth captures fast transients with crystal‑clear detail.

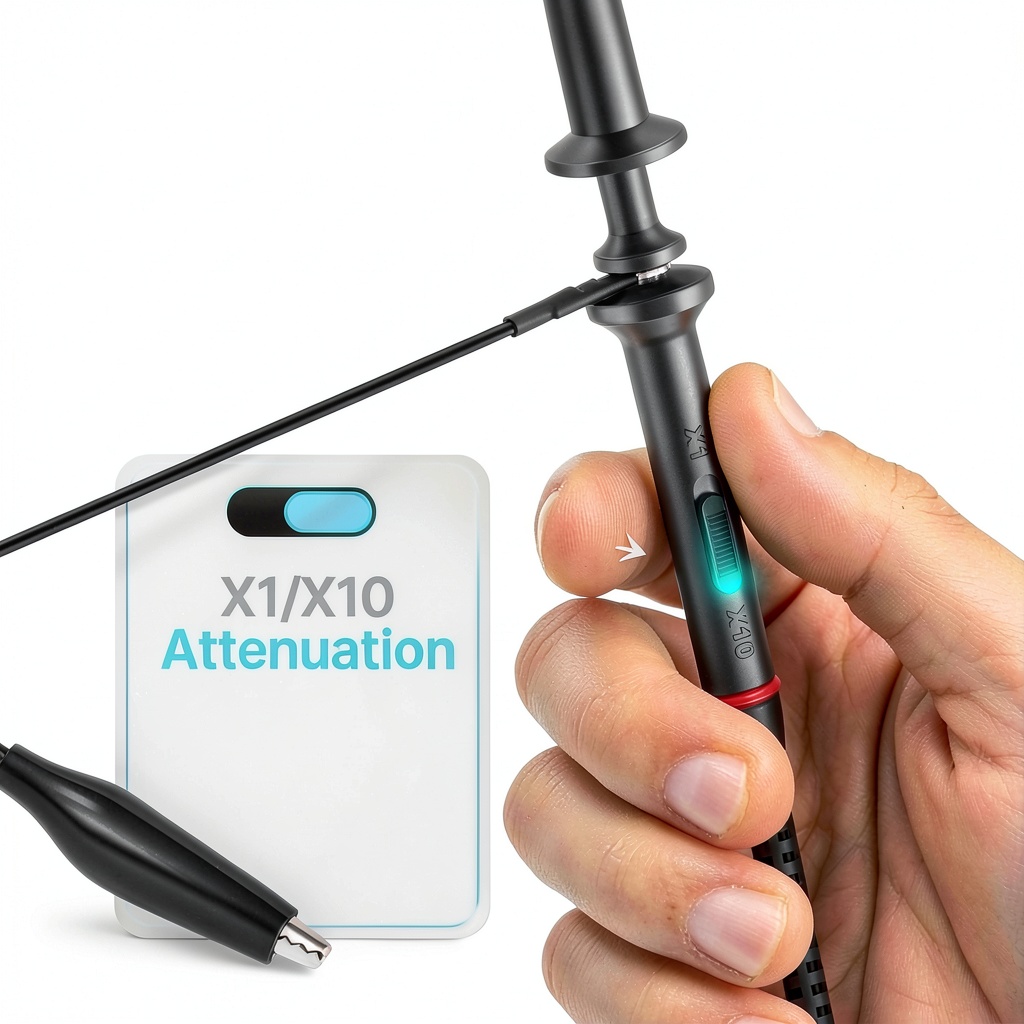

• Dual attenuation (x1 and x10) adapts to low‑ and high‑voltage measurements.
• 10 MΩ/1 MΩ input resistance minimizes loading, preserving signal integrity.
• Low input capacitance reduces distortion for accurate waveform representation.
• Comprehensive after‑sales support ensures reliable operation and quick issue resolution.

FAQ

What is the maximum voltage the probe can measure in x1 mode?

In x1 mode, the PP-200 probe can safely measure up to 200 V DC plus peak AC without exceeding its voltage rating.

Can the probe be used with any oscilloscope brand?

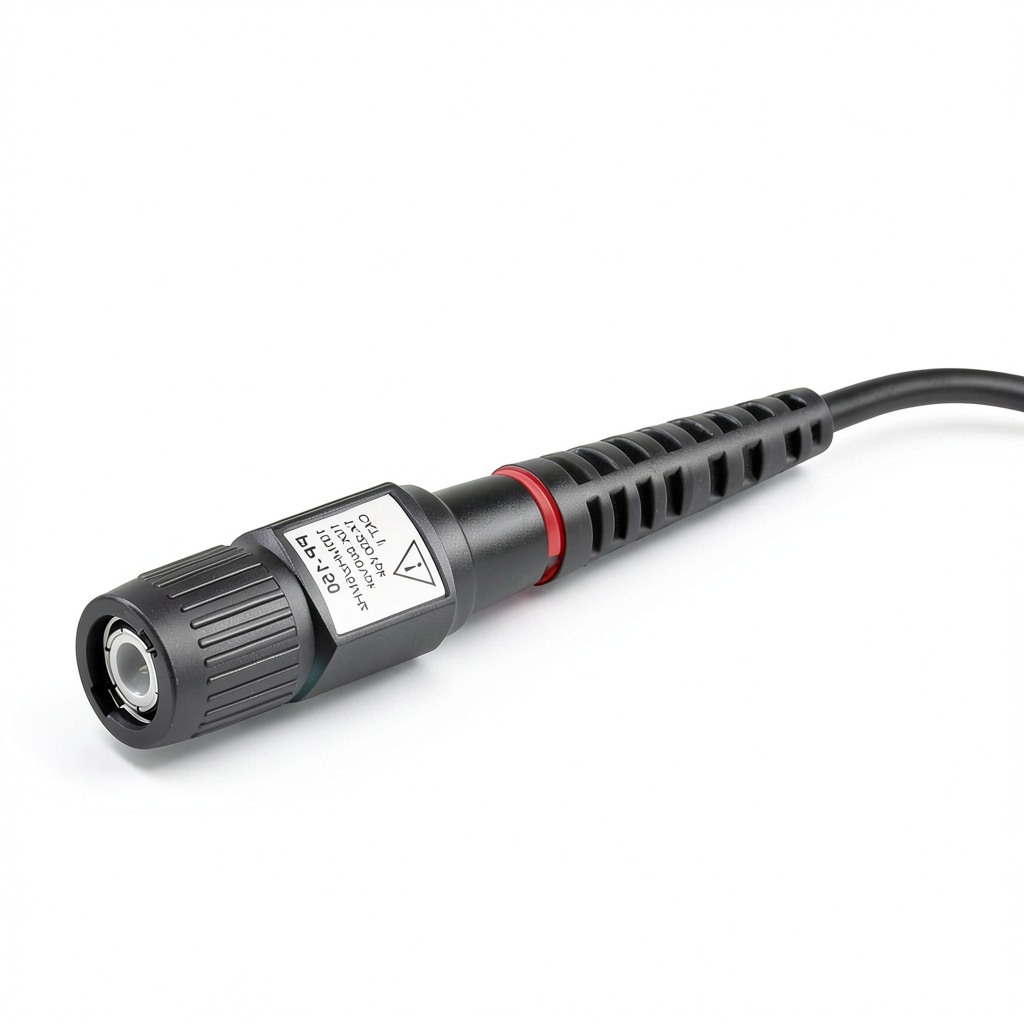

Yes, the probe features a standard BNC connector compatible with most modern oscilloscopes from major manufacturers, ensuring broad compatibility.

How does the attenuation affect the input capacitance?

When switched to x10 attenuation, the probe’s input capacitance drops to approximately 18.5‑22.5 pF, which helps maintain signal fidelity at higher voltage levels.

Is there a warranty or guarantee for the PP-200 probes?

Hantek provides a one‑year limited warranty covering manufacturing defects, and our support team is available to assist with any warranty claims.

What cable length is included, and is it replaceable?

The probe comes with a 1.2 m (1200 mm) shielded cable. While the cable is designed for optimal performance, replacement cables of the same specification can be sourced if needed.
