PCBite 5X Ground Spring Needles 3.5mm by Sensepeek Probe Accessory

Description

Product Overview

The PCBite 5X Ground Spring Needles are engineered to deliver a hands‑free probing experience that dramatically improves workflow efficiency on crowded printed circuit boards. Each needle features a 3.5mm spring‑loaded tip crafted from high‑conductivity copper alloy, providing a consistent, low‑resistance connection to tiny surface‑mount devices. The spring mechanism automatically compensates for slight variations in component height, ensuring a stable electrical contact without the need for manual pressure. This design reduces the risk of damaging delicate components while preserving the fidelity of the signal being measured.

Sensepeek, a recognized name in precision test equipment, has integrated rigorous quality controls throughout the manufacturing process. The needles are plated with a thin layer of gold to enhance corrosion resistance and maintain a reliable connection over extended use. Package dimensions of 4.13 x 2.91 x 0.39 inches make the set compact enough to fit into standard toolboxes, yet the robust construction can withstand the rigors of daily laboratory work. With a best‑seller rank of #24 in Oscilloscope Probes, these needles have earned the trust of engineers and technicians worldwide.

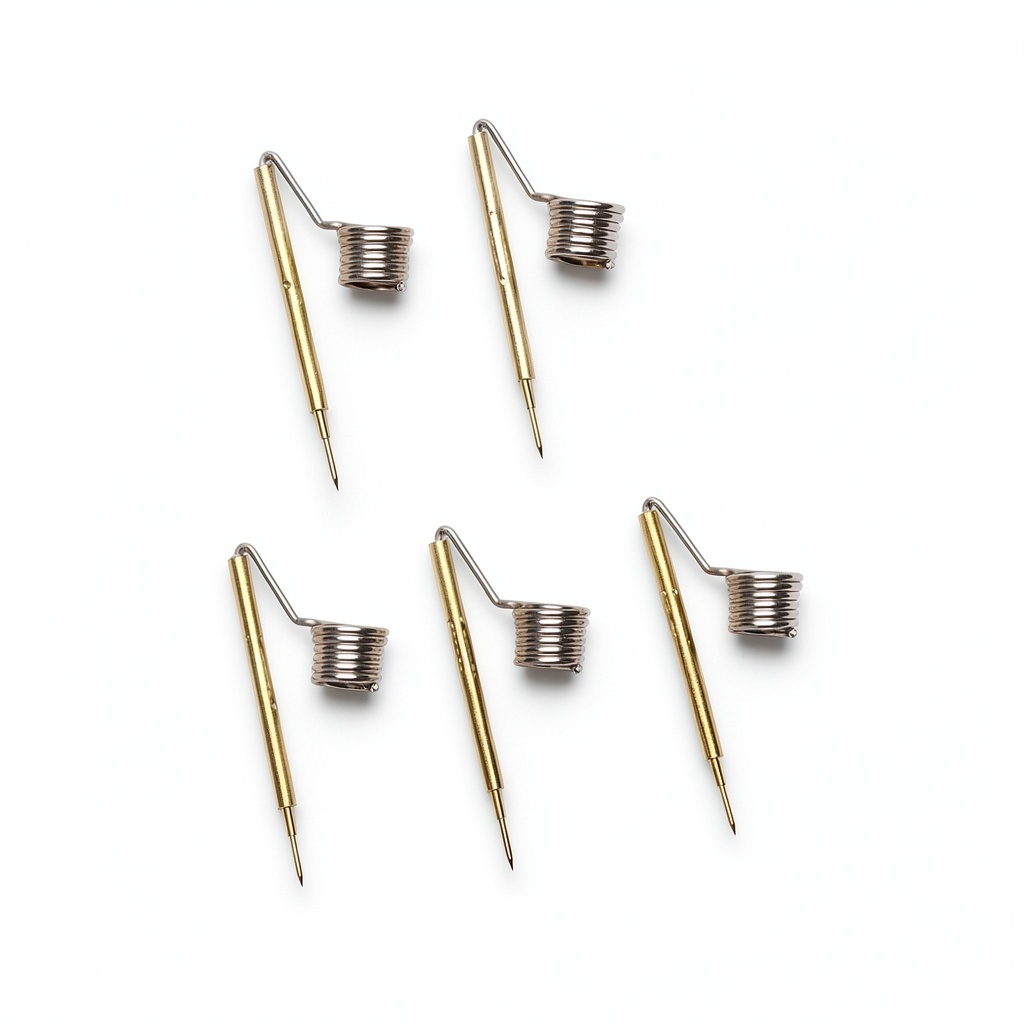

Beyond the core technical specifications, the PCBite 5X set includes five individual ground spring needles, each precisely calibrated to 3.5mm length. This uniformity simplifies setup time, allowing users to quickly select the appropriate needle for a given test scenario. The product is compatible with a wide range of oscilloscope probe heads, making it a versatile addition to any electronics testing arsenal. Whether you are debugging a high‑speed digital circuit or performing analog signal analysis, the PCBite 5X Ground Spring Needles provide the reliability and precision required for accurate measurements.

Usage

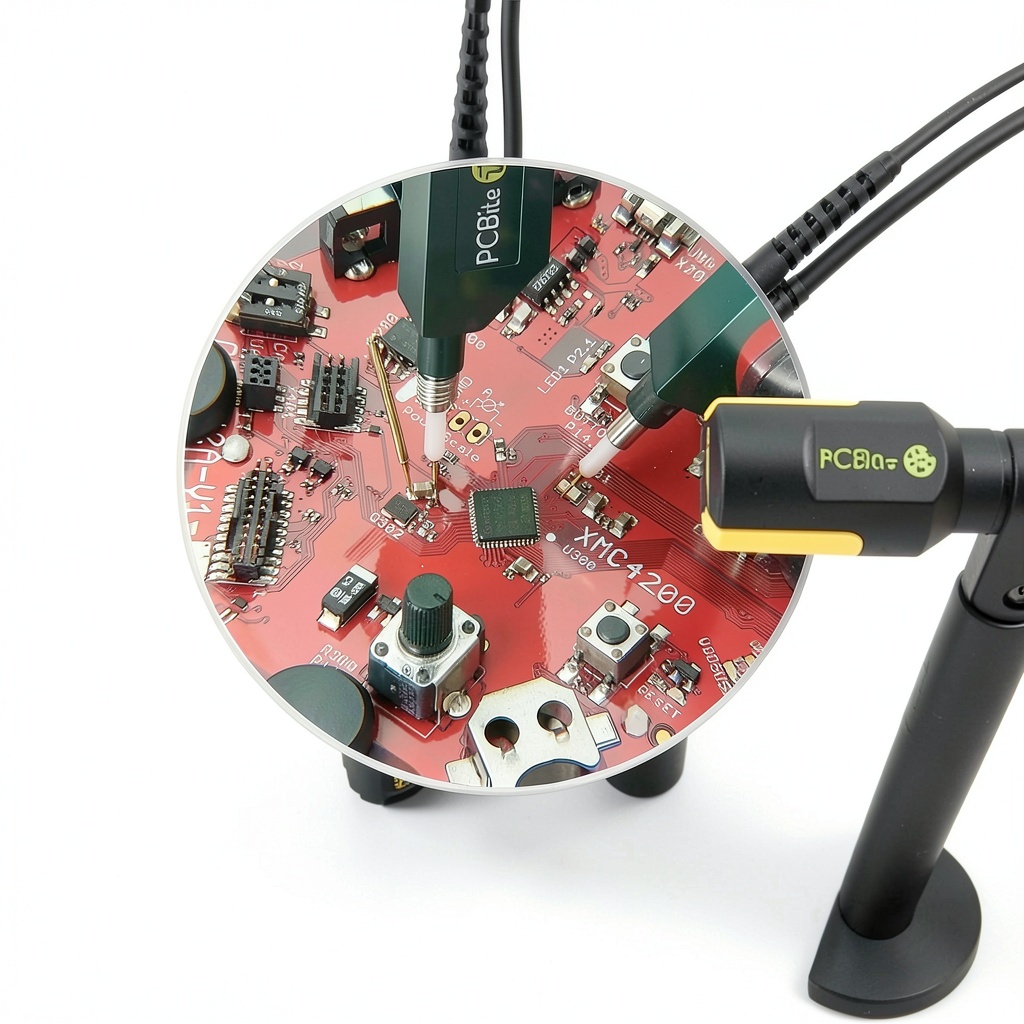

These spring needles excel in environments where space is at a premium and traditional probe tips struggle to reach. In high‑density PCB assemblies, the ability to attach a probe without manually holding the tip frees both hands for soldering, component placement, or adjusting test equipment. This is especially valuable in production line debugging, where rapid iteration can reduce downtime and improve overall yield. The needles also perform well in educational settings, allowing students to explore circuit behavior without the fear of breaking fragile components.

For field service technicians, the compact form factor and hands‑free capability translate into faster fault isolation on equipment that cannot be easily disassembled. The spring‑loaded design maintains contact even when the board vibrates or shifts slightly, ensuring continuous data capture during dynamic testing. Additionally, the gold‑plated tips minimize oxidation, which is crucial for long‑term reliability when the tools are stored for extended periods between uses.

Why Choose Us

Choosing the PCBite 5X Ground Spring Needles means selecting a product backed by a brand that prioritizes precision engineering and customer satisfaction. Sensepeek’s commitment to quality is reflected in the meticulous material selection, strict tolerance controls, and comprehensive testing performed on each batch. The needles are designed to integrate seamlessly with existing oscilloscope accessories, eliminating the need for additional adapters or modifications.

Beyond the hardware, Sensepeek offers responsive technical support and a clear warranty policy that gives users confidence in their investment. Should you encounter any issues, the support team is equipped to provide troubleshooting guidance, replacement parts, or detailed usage instructions. This level of after‑sales service distinguishes the PCBite 5X set from generic alternatives that often lack dedicated assistance.

Key Features

• Five 3.5mm spring‑loaded ground needles for hands‑free probing
• Gold‑plated copper alloy tips ensure low resistance and corrosion resistance
• Compact packaging fits easily into standard toolkits and workstations
• Compatible with most oscilloscope probe heads and test equipment
• Dedicated Sensepeek support and warranty for reliable after‑sales service

FAQ

Can these needles be used with any oscilloscope probe?

Yes, the PCBite 5X Ground Spring Needles are designed to be universally compatible with standard oscilloscope probe heads. They attach securely without requiring additional adapters, making them suitable for a wide range of test equipment.

What is the benefit of the spring‑loaded design?

The spring mechanism automatically adjusts to slight variations in component height, providing a stable electrical connection without manual pressure. This reduces the risk of damaging delicate SMD parts and improves measurement consistency.

Are the needles suitable for high‑frequency measurements?

Absolutely. The gold‑plated copper alloy construction minimizes parasitic inductance and capacitance, preserving signal integrity even at high frequencies. This makes the needles ideal for both analog and digital high‑speed applications.

How does Sensepeek handle warranty claims?

Sensepeek offers a straightforward warranty process. If a defect is identified within the warranty period, you can contact their support team with the purchase details, and they will arrange a replacement or repair, ensuring minimal disruption to your workflow.

Can I use these needles for both ground and signal probing?

While the set is optimized for ground connections, the spring‑loaded tip can also serve as a signal probe for low‑current measurements. However, for high‑precision signal work, dedicated signal probes are recommended to achieve the best accuracy.
