Oscilloscope Clip Probe Sumnacon 100MHz 600V DC 10:1/1:1 Switchable

Description

Product Overview

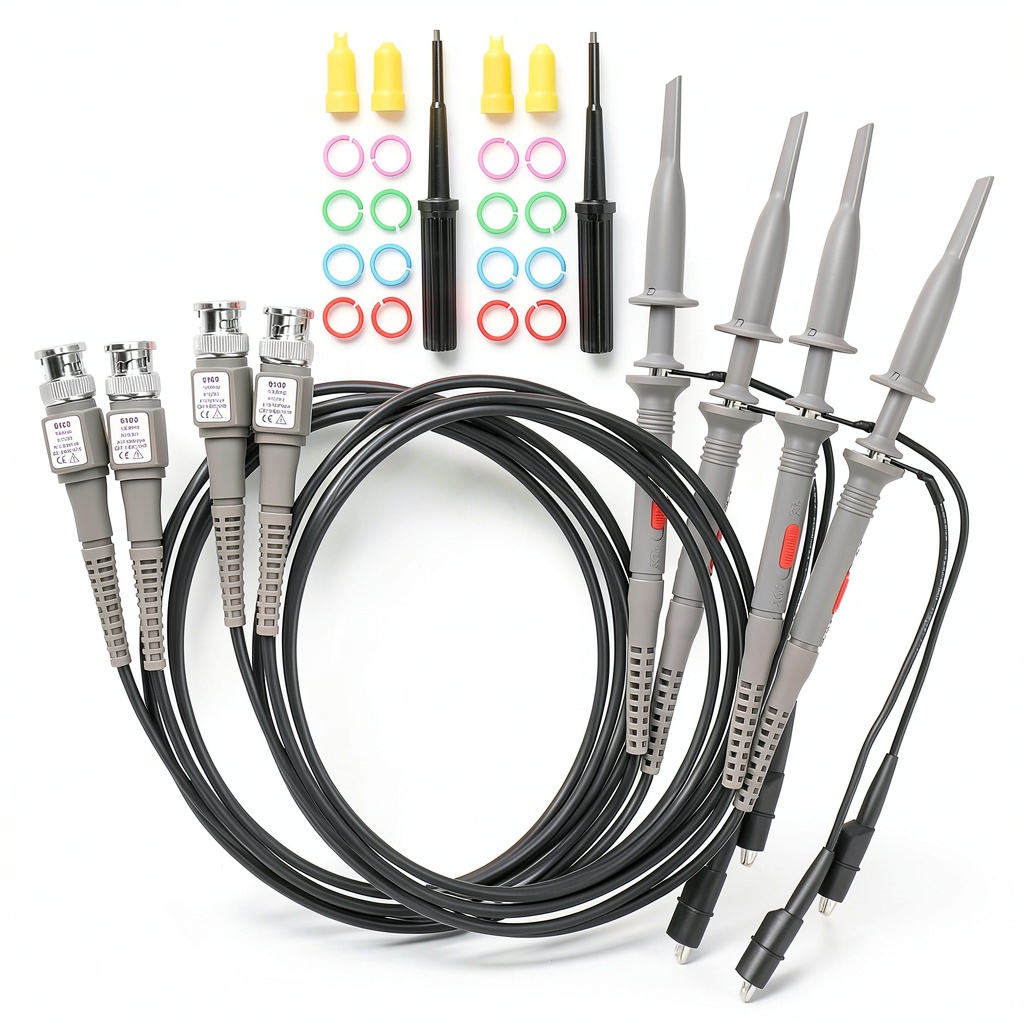

The Sumnacon 4‑piece Oscilloscope Clip Probe set is engineered for professionals and enthusiasts who demand accurate, high‑sensitivity signal capture across a broad frequency range. Designed to complement oscilloscopes with bandwidths up to 100 MHz, each probe delivers a clean, low‑noise connection, enabling precise waveform analysis in demanding environments. The set includes two interchangeable probe tips—one optimized for 10:1 attenuation and another for 1:1—allowing seamless transition between high‑voltage and low‑voltage measurements without sacrificing fidelity. Constructed from a durable, high‑temperature resistant polymer housing, the probes feature a compact 3.94 × 3.94 × 1.57 inch form factor and weigh only 7.05 ounces, making them easy to handle during extended testing sessions. The integrated mini alligator clip and ground lead provide a secure, low‑impedance path to ground, reducing ringing and improving signal integrity. With a 600 V DC rating and low power consumption, these probes are suitable for both bench‑top and field applications, delivering consistent performance while conserving battery life in portable setups.

Usage

These probes excel in a variety of real‑world scenarios. In electronics repair workshops, technicians can quickly attach the mini alligator clip to test points on printed circuit boards, using the 10:1 tip to safely measure high‑voltage nodes without overloading the oscilloscope input. Hobbyists building Arduino or Raspberry Pi projects benefit from the 1:1 tip when debugging low‑level signals, such as PWM outputs or sensor data streams, where preserving signal amplitude is critical. Laboratory engineers conducting research on power electronics or motor drives rely on the probes’ high input impedance and low capacitance to capture fast transients with minimal distortion. The robust construction also makes the probes suitable for field diagnostics in automotive or aerospace environments, where vibration resistance and reliable grounding are essential. Whether you are troubleshooting a malfunctioning board, validating a prototype, or performing detailed signal analysis in a controlled lab, the Sumnacon clip probes provide the flexibility and accuracy needed for successful outcomes.

Why Choose Us

Choosing the Sumnacon Oscilloscope Clip Probe set means investing in a product that combines meticulous engineering with practical design. Each probe undergoes rigorous quality testing to ensure it meets the 600 V DC rating and maintains consistent attenuation across the full 100 MHz bandwidth. The interchangeable tip system eliminates the need for multiple separate probes, reducing clutter and cost while delivering the same performance as dedicated high‑voltage and low‑voltage probes. Our manufacturing process utilizes precision‑molded polymer components that resist wear, chemical exposure, and temperature extremes, extending the service life of the probes even under heavy use. Additionally, Sumnacon offers responsive customer support and a straightforward warranty policy, providing peace of mind and assistance should any issues arise. By focusing on durability, accuracy, and user‑centric features, we deliver a probe solution that stands out in the competitive market of oscilloscope accessories.

Key Features

• High‑sensitivity design captures subtle signal variations for detailed analysis.
• Switchable 10:1 and 1:1 attenuation lets you measure both high‑voltage and low‑voltage signals with a single set.
• 100 MHz bandwidth ensures accurate representation of fast‑changing waveforms.
• Compact, lightweight housing provides ergonomic handling during prolonged testing.
• Dedicated after‑sales support and warranty give confidence in long‑term reliability.

FAQ

What oscilloscopes are compatible with these probes?

Any oscilloscope with a bandwidth of up to 100 MHz and standard BNC input connectors can use these probes. They are designed to work with both bench‑top and portable models from major manufacturers.

Can I use the 1:1 tip for high‑voltage measurements?

The 1:1 tip is intended for low‑voltage signals where preserving amplitude is important. For voltages approaching the 600 V DC limit, the 10:1 tip should be used to protect the oscilloscope and maintain measurement accuracy.

How do I switch between the 10:1 and 1:1 attenuation modes?

Simply detach the current probe tip and replace it with the alternate tip included in the set. The connection is tool‑free and locks securely in place, allowing rapid changes without recalibration.

Is the probe suitable for measuring high‑frequency digital signals?

Yes, the 100 MHz bandwidth and low input capacitance make the probe well‑suited for capturing fast digital edges and high‑speed communication signals such as SPI, I²C, and UART.

What warranty does Sumnacon provide for this product?

Sumnacon offers a one‑year limited warranty covering manufacturing defects. Contact our support team for assistance with any issues or replacement requests.
